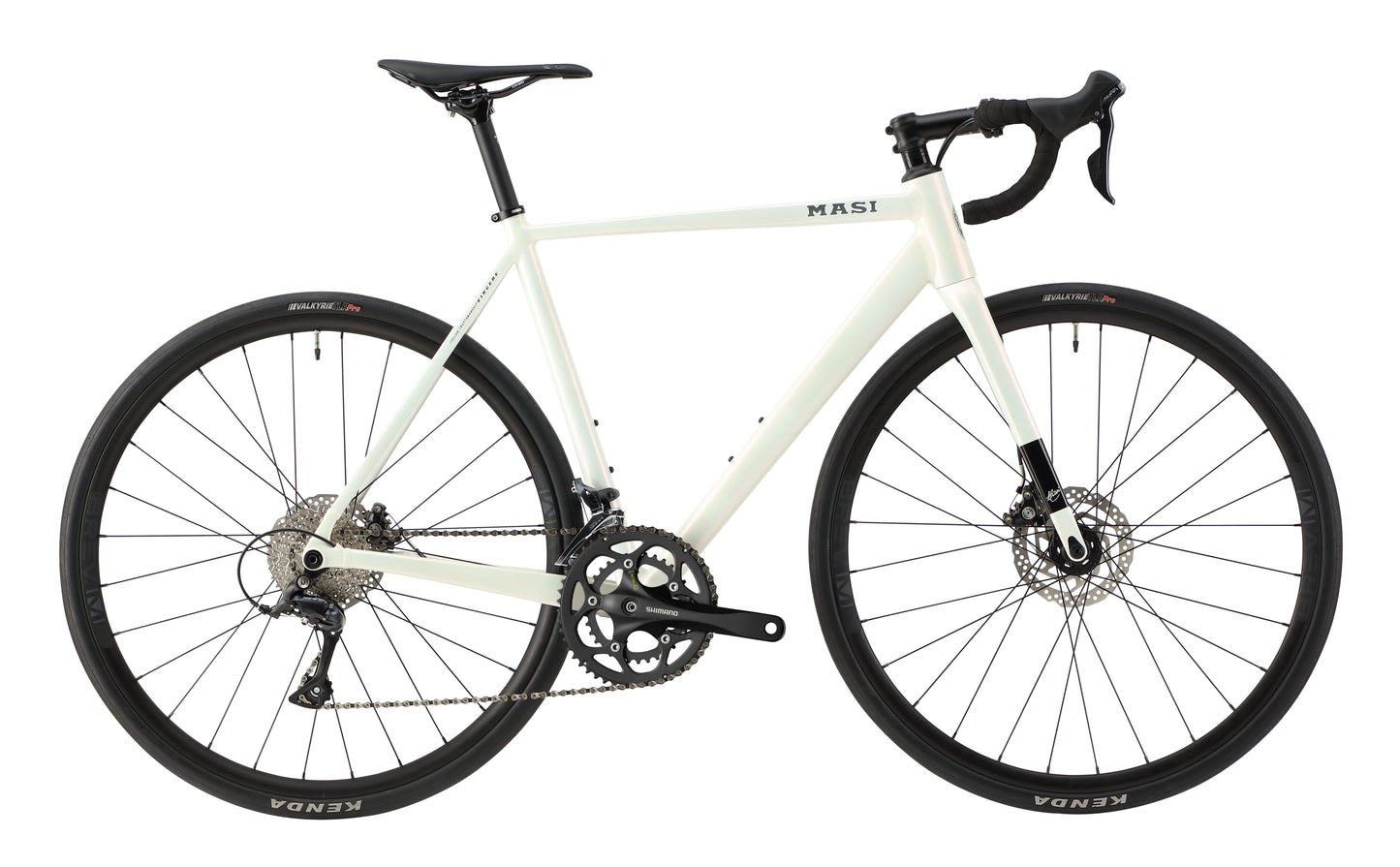

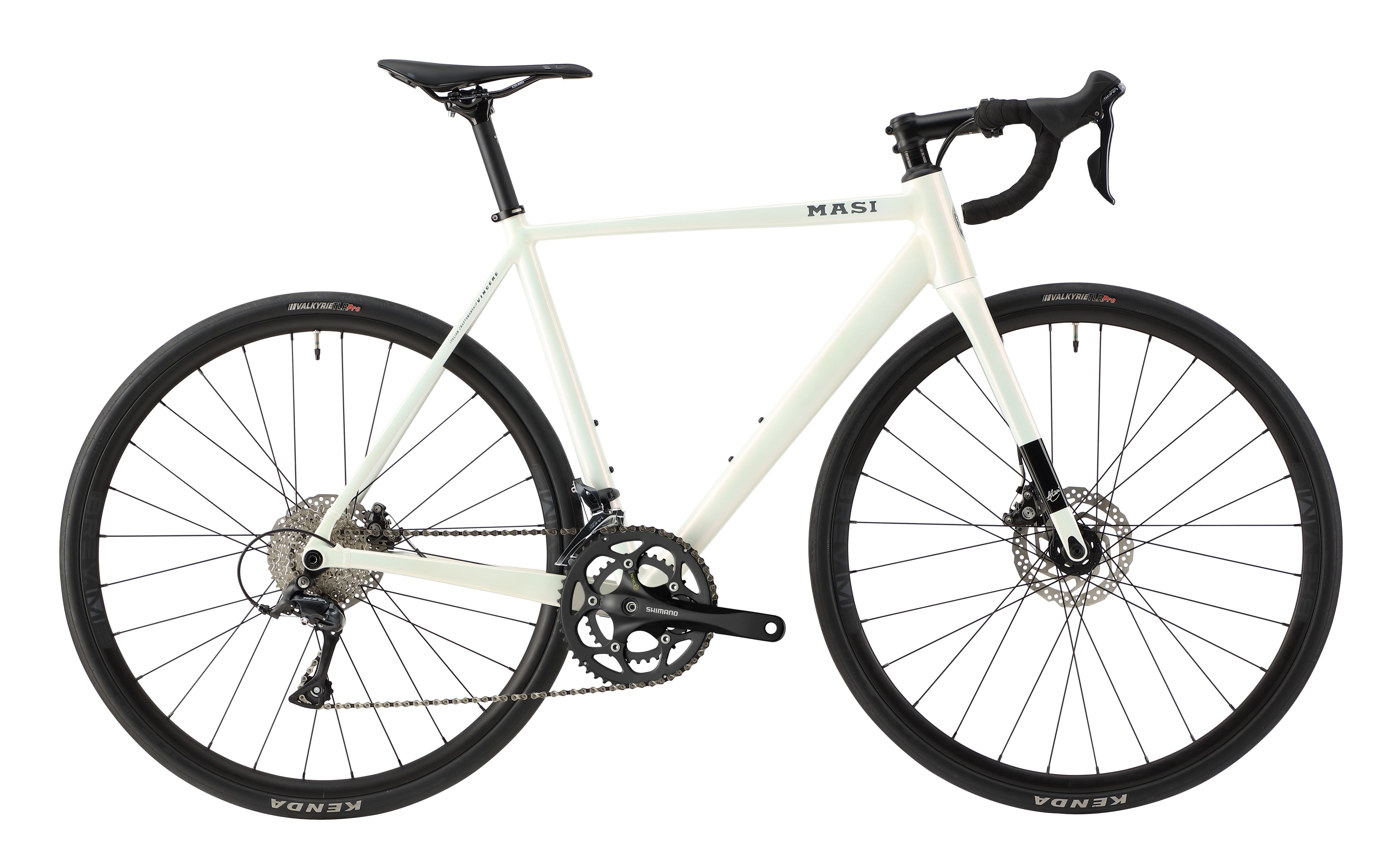

  • The sleek white VINCERE 4 racing bike boasts a streamlined alloy frame, drop handlebars, disc brakes, and black tires with visible gears.

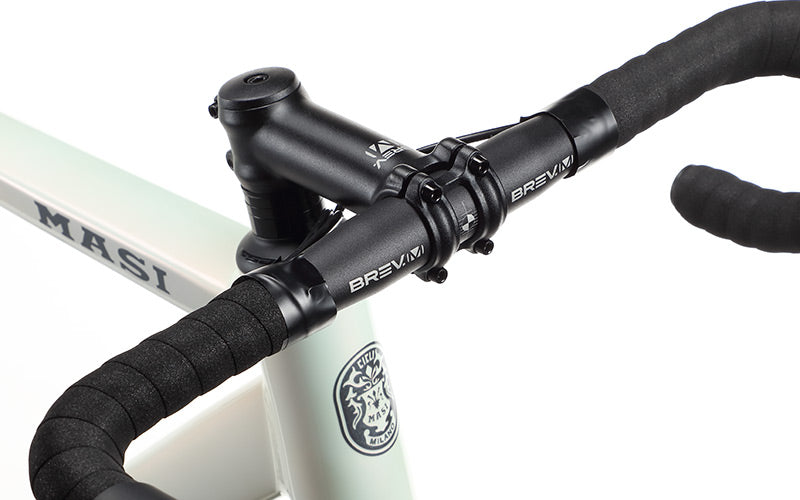

  • Close-up of a bicycle handlebar with black tape and a BREV M logo. The VINCERE 4 by Masi Bikes showcases an alloy frame in white, adorned with the MASI logo and a crest. Its internal cable routing ensures a sleek design against the plain white background.

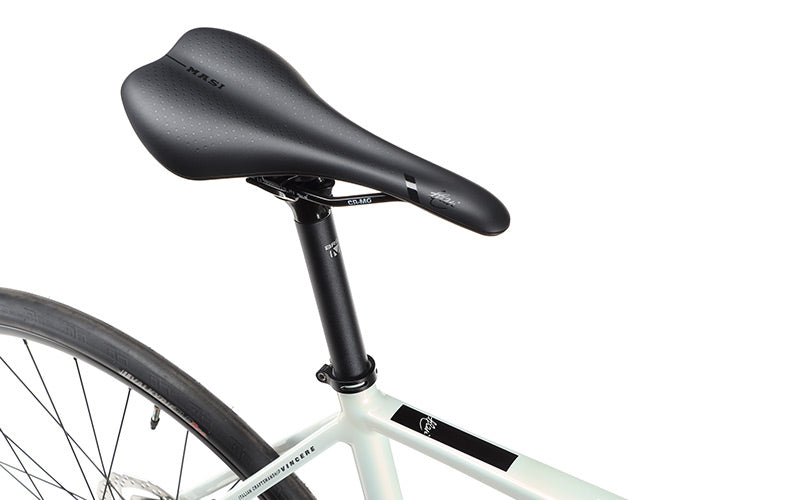

  • Close-up of a VINCERE 4 by Masi Bikes: a black saddle on a sleek alloy frame with internal cable routing. The rear wheel is partially visible against a white background, showcasing the modern design of the bike seat and seat post.

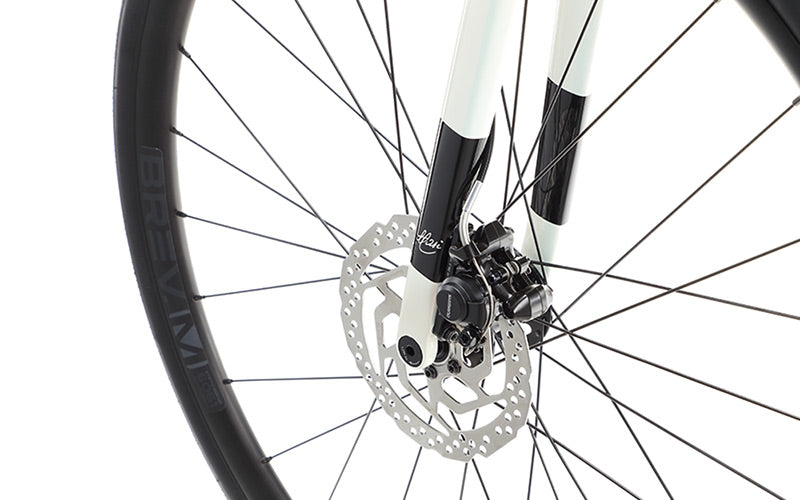

  • Close-up of VINCERE 4 by Masi Bikes: A bicycle wheel featuring a disc brake system, with a white carbon fork and black accents complementing the alloy frame. The silver brake rotor, thin black spokes, black-rimmed tires, and internal cable routing create a sleek look.

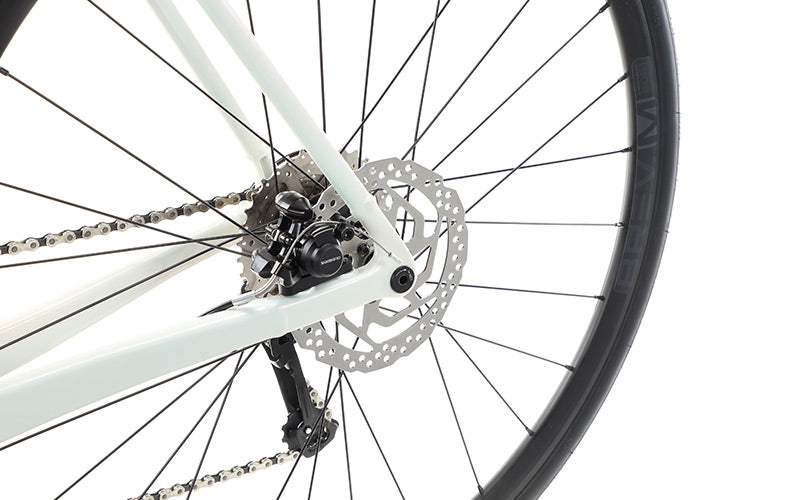

  • Close-up of the VINCERE 4 by Masi Bikes, featuring its rear wheel with spokes, disc brake, and chain on a sleek white alloy frame. The black tire contrasts against a white background, highlighting the mechanical details and internal cable routing for a streamlined look.
1 6

Masi Bikes

VINCERE 4

VINCERE 4

The Masi Vincere is a highly optimized alloy frame designed for performance and durability. Complementing the frame is the carbon fork that enhances the bike's handling and responsiveness.

This model incorporates an internal cable routing design that not only streamlines the aesthetics but also protects the cables from external elements.

Focused on the rider's experience, the bike boasts a geometry that balances comfort and efficiency, making it ideal for both competitive racing and leisurely rides.

––– Please note:
Product images are for color reference only and specifications may vary. Specifications are subject to change without notice depending on component availability and other factors.

Color: Seashell White
Size
View full details

Order Inquiries: twdistributor@masibikes.com

Close-up of a bicycle handlebar with black tape and a BREV M logo. The VINCERE 4 by Masi Bikes showcases an alloy frame in white, adorned with the MASI logo and a crest. Its internal cable routing ensures a sleek design against the plain white background.

FEATURES

  • The Alloy Frame provides a balance of strength and weight, ensuring durability and performance while reducing overall bike weight.
  • Our Carbon Fork enhances ride comfort and handling by absorbing road vibrations and reducing weight for improved agility.
  • Internal Cable Routing creates a sleek, aerodynamic profile by concealing cables within the frame.
  • The Rider-Focused Geometry is designed to offer a comfortable and efficient riding position.

SPECIFICATIONS

FRAMESET
FrameMasi Alloy, ​Threaded BSA bottom bracket, Flat-mount disc brake, 12 x 142mm thru-axle, Internal cable routing
ForkMasi Carbon, 1 1/8" - 1.5" tapered, 12x100mm thru-axle, Flat-mount disc
ColorsAsh Blue, Sea Blue, Sky Blue, Seashell White
DRIVETRAIN
CranksShimano​ FC-R345, 50-34T​
Pedals
ChainKMC X9​
Bottom BracketShimano​ BB-ES300
Front DerailleurShimano​ FD-R3000​
Rear DerailleurShimano​ RD-R3000​
Derailleur ShifterShimano​ ST-R3000​
Freewheel/CassetteShimano CS-HG4009, 11-34T​
WHEELS
TiresKenda High Performance Racing Tire, 700x28c​
Wheels/RimsBrev M. Alloy Rim, Double wall
HubsKT 12 x 100mm, Thru Axle, 6 Bolt Disc, 28H​ 12 x 142mm, Thru Axle, 6 Bolt Disc, 28H​
BRAKING SYSTEM
BrakesJagwire MCX2-FM / 160mm​
OTHER COMPONENTS
Grips/Tape
HandlebarBrev M., Ø31.8mm / Black ​
StemMasi 31.8mm / -7° / Black​
Headset
SaddleMasi 280 x 139mm, Ti-Alloy Rail​
Seat PostMasi Ø27.2mm / 330mm / Black​

GEOMETRY

SIZEXSSMLXL
A. Top Tube (Effective)513mm530mm546mm563mm579mm
B. Seat Tube (C-T)480mm510mm540mm560mm580mm
C. Stack Height500mm525mm550mm575mm600mm
D. Reach360mm369mm378mm387mm396mm
E. Standover701mm730mm759mm780mm799mm
F. Head Tube Length103mm123mm143mm168mm194mm
G. Head Angle70.5°72.2°73.1°73.5°73.5°
H. Seat Angle73°73°73°73°73°
I. Wheel Base984mm986mm984mm997mm1012mm
J. Chainstay420mm420mm420mm420mm420mm
K. BB Drop68mm68mm68mm68mm68mm
L. Fork Offset53mm53mm43mm43mm43mm
M. Stem Length
N. Bar Width
O. Crank Length
P. Wheel Size700700700700700
