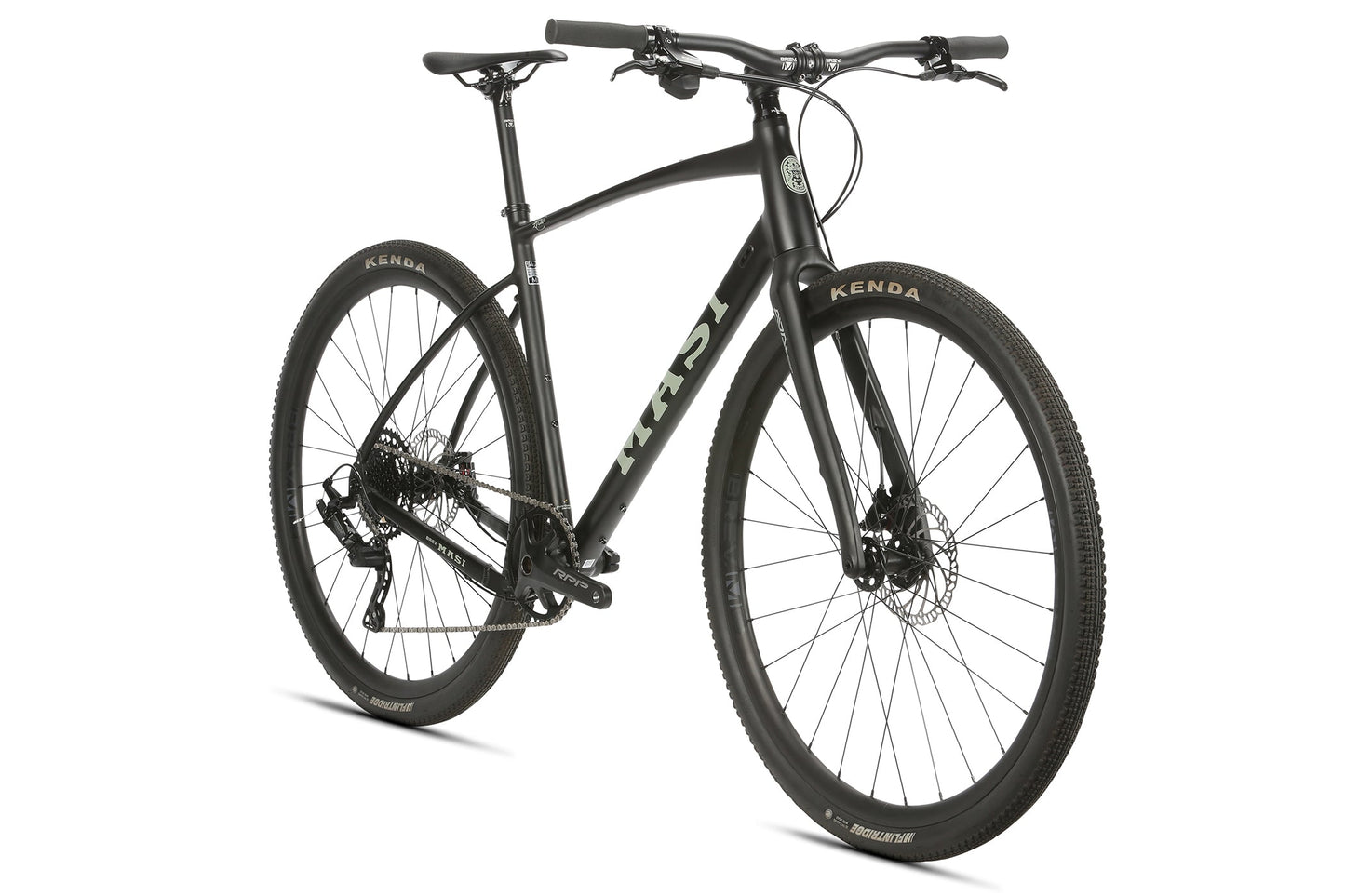

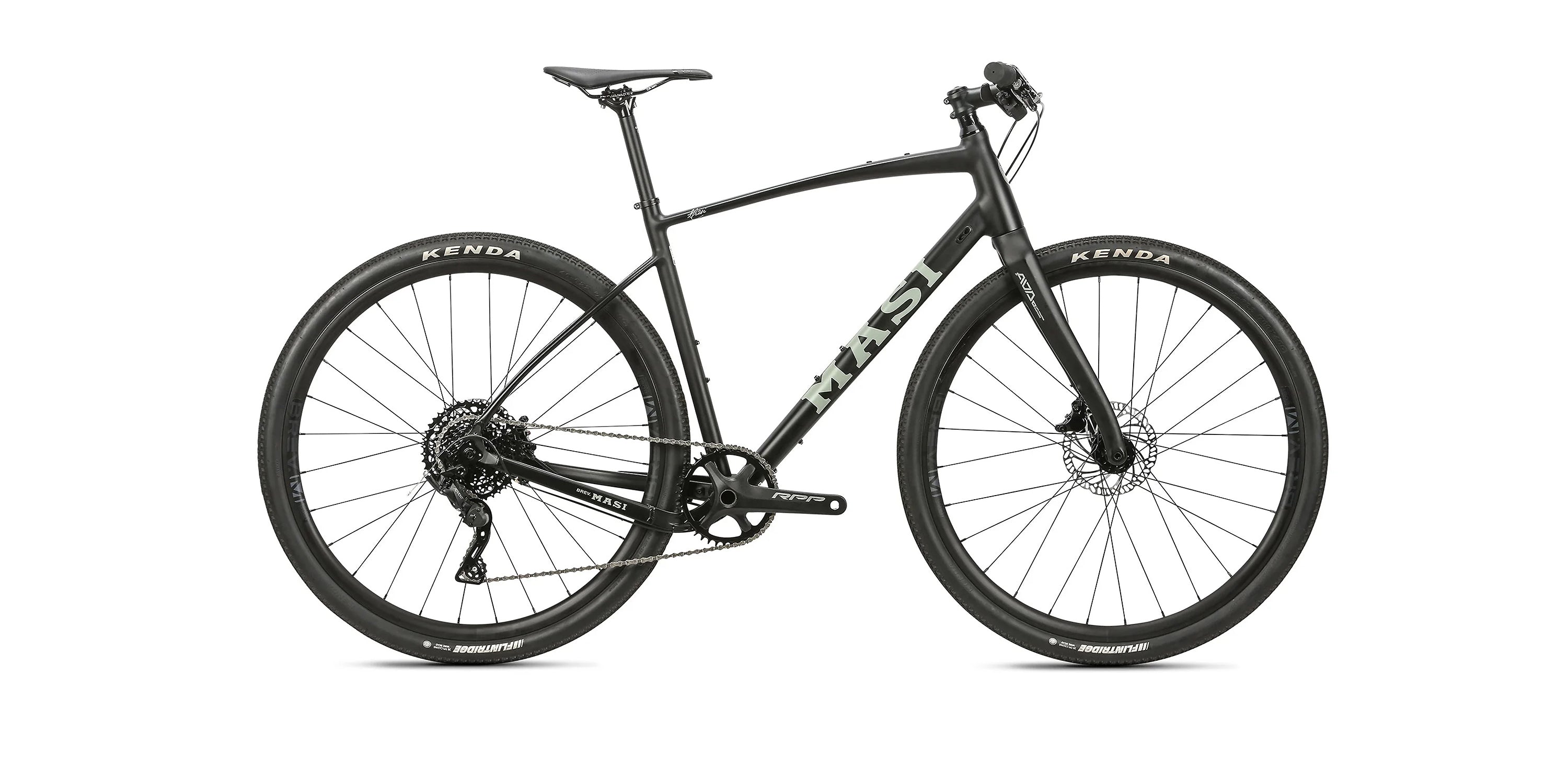

  • The BRUNELLO FB NOVE is a sleek black hybrid bicycle with knobby tires, an aluminum gravel frame, and flat handlebars, seen from the front.

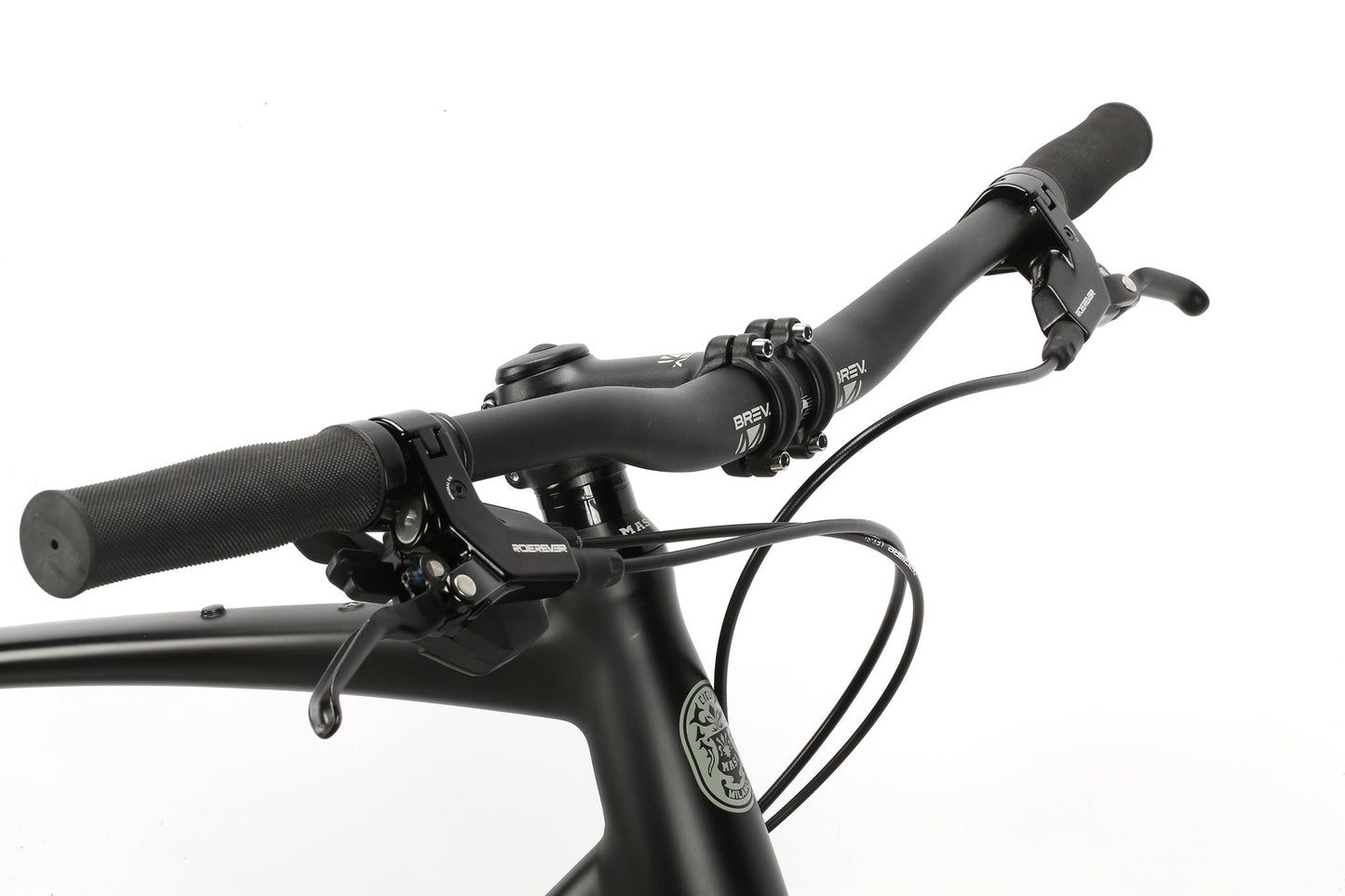

  • Close-up of BRUNELLO FB NOVEs handlebars and brake levers with an aluminum gravel frame against a white background.

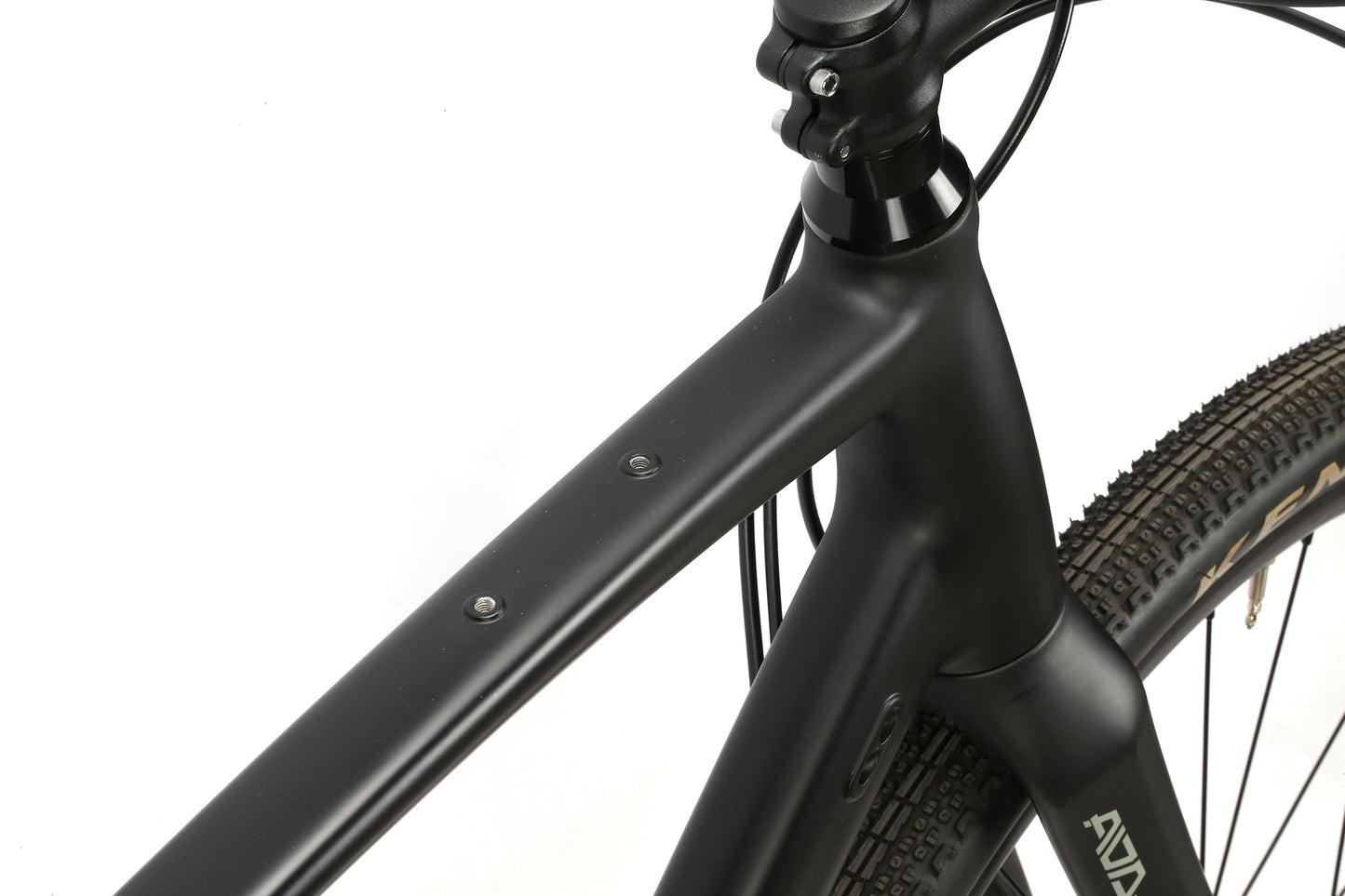

  • Close-up of a sleek BRUNELLO FB NOVE with an aluminum gravel frame, showcasing the matte finish and knobby tire tread.

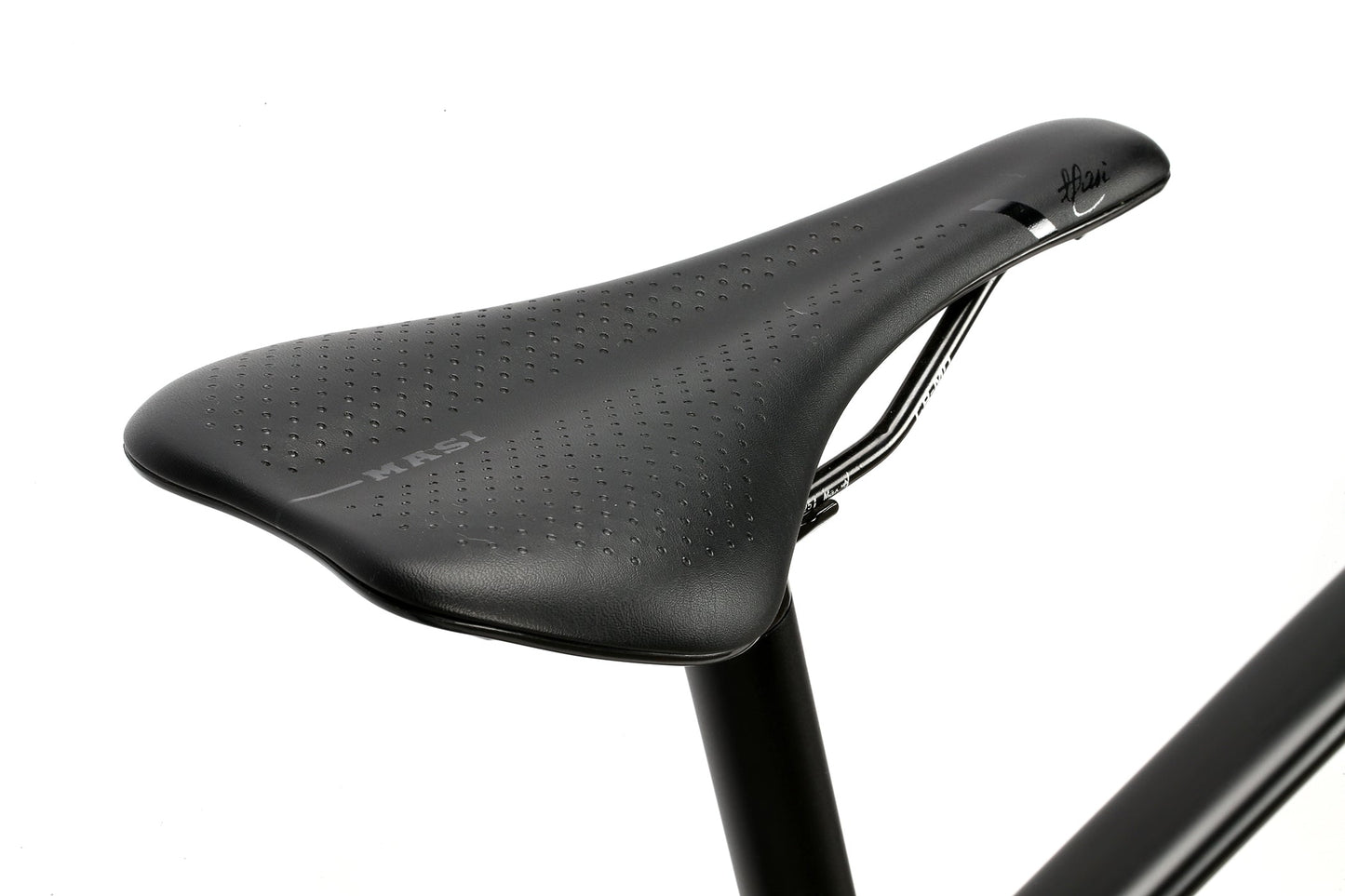

  • Close-up of the BRUNELLO FB NOVE black saddle with subtle perforations on an aluminum gravel frame.

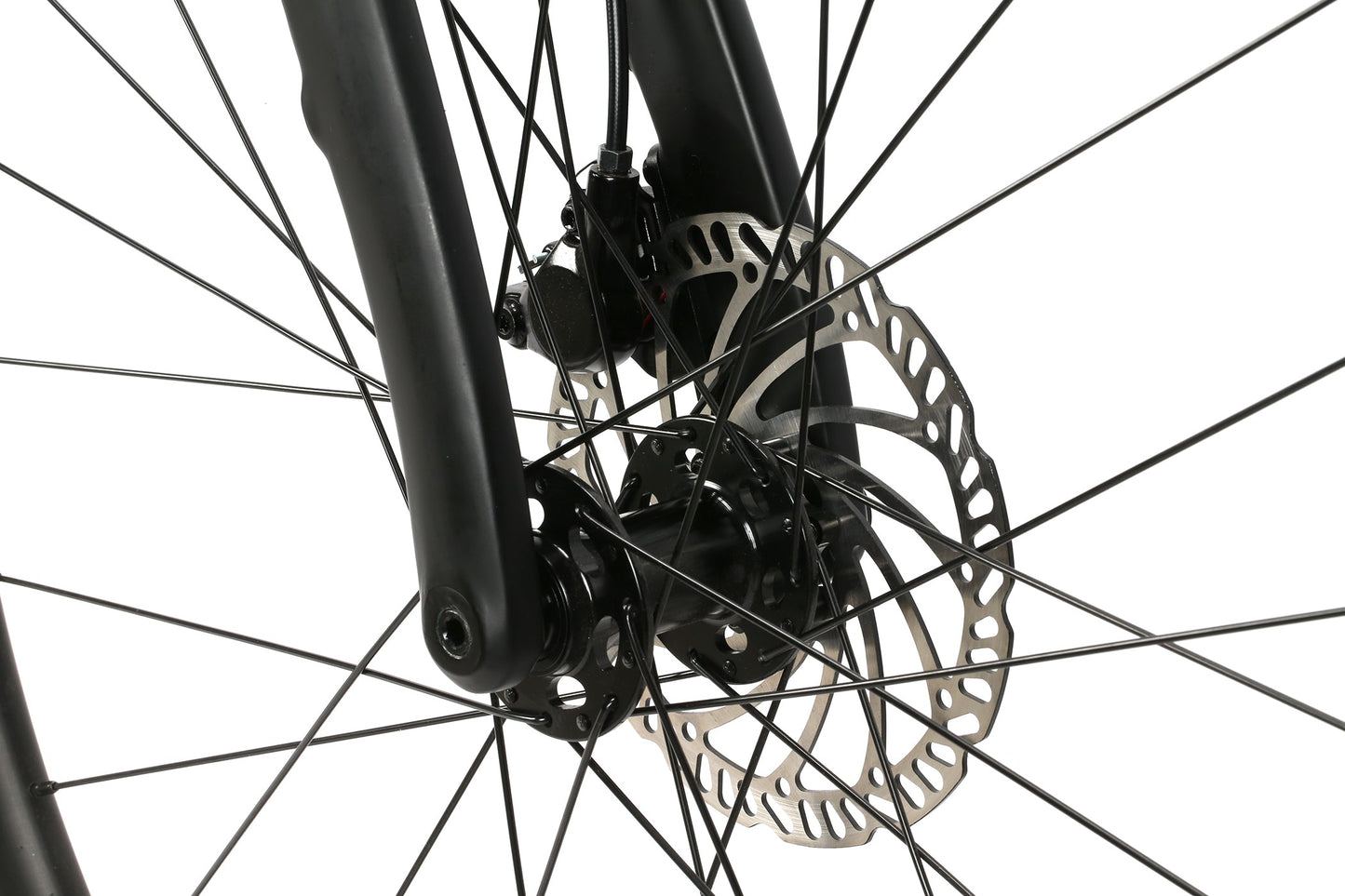

  • Close-up of a BRUNELLO FB NOVE wheel with disc brakes, showcasing spokes and rotor against a white background.

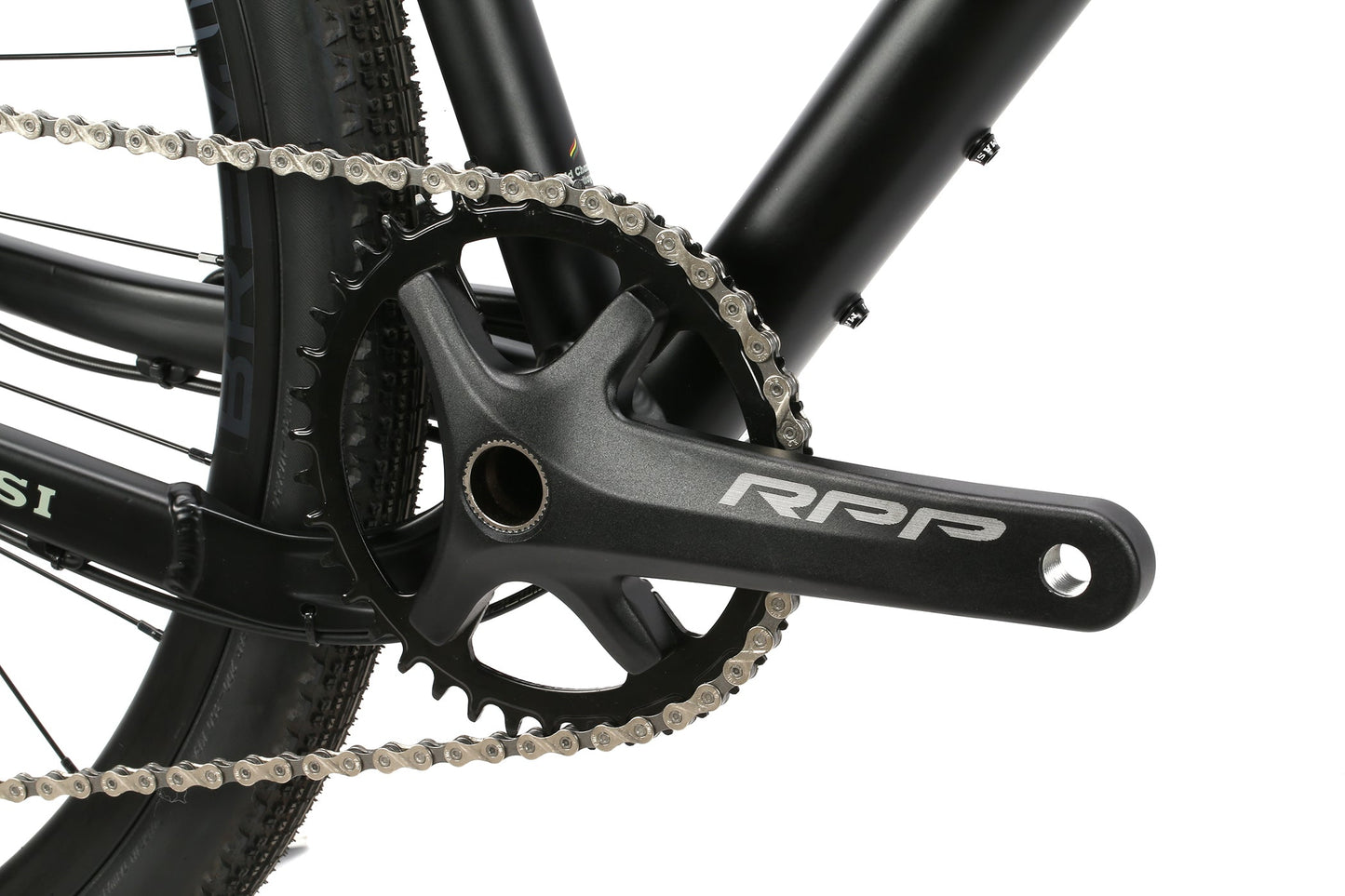

  • Close-up of a BRUNELLO FB NOVE black crankset with a silver chain, part of a 9-speed drivetrain, labeled RPP.
1 6

Masi Bikes

BRUNELLO FB NOVE

BRUNELLO FB NOVE

$749.99 USD
$1,499.99 USD $749.99 USD
Sale Sold out
Shipping calculated at checkout.

42726

With all of the Brunello style, and the comfort afforded by a flat-bar, the Brunello FB aluminum gravel frame and full carbon fork are at home whether fetching a coffee or exploring the dirt option off the bike path. With a dropped chainstay, room for 45c tires, flat-bar comfort geometry, and 1X, 9-speed drivetrain, there is not much Brunello FB Nove can't do.
Color
Size
View full details
A cyclist rides on a winding road surrounded by dry vegetation and metal barriers. The perspective is through a gap in a concrete or metal structure, framing the scene with an urban and somewhat industrial backdrop.

FEATURES

  • Butted, formed, and smooth welded aluminum frame
  • Full-carbon fork
  • 12mm thru-axles
  • microSHIFT Advent drivetrain
  • 650b or 700c compatible
  • 700x45c tire clearance
  • Flat-bar geometry

SPECIFICATIONS

FRAMESET
FrameBrunello Flat-bar gravel | Smooth welded double-butted aluminum | 1.125 - 1.5" integrated head tube | BB86 bottom bracket | Flat-mount disc brake | Replaceable derailleur hanger | Internal dropper post compatible | 12 x 142mm thru-axle
ForkBrunello gravel | MC-9 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | Fender mounts | 12 x 100mm thru-axle
ColorsMatte Black
DRIVETRAIN
CranksProwheel 40T Narrow-Wide cold forged crank
Pedals--
ChainKMC X9
Bottom BracketProwheel BB86 sealed
Front Derailleur--
Rear DerailleurmicroSHIFT Advent RD-M6195M
Derailleur ShiftermicroSHIFT Advent SL 9s
Freewheel/CassettemicroSHIFT CS-H093A 11-42T
WHEELS
TiresKenda Flintridge | 700x40c | 60tpi
Wheels/RimsBrev M. 700c Performance Gravel Disc | Depth: 23mm, Width (internal): 21mm | 32H | Double wall | Tubeless compatible
HubsBrev M. Disc | Sealed bearings | Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle | 6-bolt | 32H
BRAKING SYSTEM
BrakesRever Attack-U FM hydraulic disc | Flat mount | 2-finger lever | 6-bolt rotor, F: 160mm, R: 160mm
Brake LeversRever 2-finger hydraulic
OTHER COMPONENTS
Grips/TapeBrev M. lock-on grip
HandlebarBrev M. Alloy Gravel Riser | ϕ 31.8mm | Rise: 20mm | Sweep: 9° | Width 47-51cm: 640mm, 54-56cm: 680mm, 58-60cm: 700mm
StemBrev M. Gravel Variable Rise | 3D forged alloy | -6/-12° drop | 47cm: 90mm, 51-54cm: 100mm, 56-58cm: 110mm, 60cm: 120mm
HeadsetMasi by Token Omega A83 Integrated 1.125 - 1.5" tapered
SaddleMasi Gravel Performance
Seat PostBrev M. Alloy | ϕ 27.2mm x 330mm | 5mm offset
Seat ClampAlloy | ϕ 31.8mm

GEOMETRY

SIZE475154565860
A. Top Tube (Effective)549mm (21.6")555mm (21.9")570mm (22.4")585mm (23")593mm (23.3")614mm (24.2")
B. Seat Tube (C-T)440mm (17.3")470mm (18.5")500mm (19.7")520mm (20.5")540mm (21.3")570mm (22.4")
C. Stack Height553mm (21.7")575mm (22.6")595mm (23.4")610mm (24")625mm (24.6")644mm (25.4")
D. Reach395mm (15.6")395mm (15.6")400mm (15.8")407mm (16")410mm (16.1")417mm (16.4")
E. Standover733mm (28.9")769mm (30.3")796mm (31.3")807mm (31.8")826mm (32.5")851mm (33.5")
F. Head Tube Length130.5mm (5.1")151.5mm (6")171mm (6.7")184.5mm (7.3")198mm (7.8")218mm (8.6")
G. Head Angle69.5°70°705°71°71.5°71.5°
H. Seat Angle74°74.4°73.5°73°73°72°
I. Wheel Base1043mm (41.1")1046mm (41.2")1053mm (41.5")1060mm (41.7")1062mm (41.8")1075mm (42.3")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop70mm (2.8")70mm (2.8")70mm (2.8")70mm (2.8")70mm (2.8")70mm (2.8")
L. Fork Offset45mm45mm45mm45mm45mm45mm
M. Stem Length90mm100mm110mm110mm110mm120mm
N. Bar Width640mm640mm680mm680mm700mm700mm
O. Crank Length170mm170mm172.5mm172.5mm175mm175mm
P. Wheel Size700700700700700700
