Regular price $1,139.99
SKU: 47111

Free store pickup

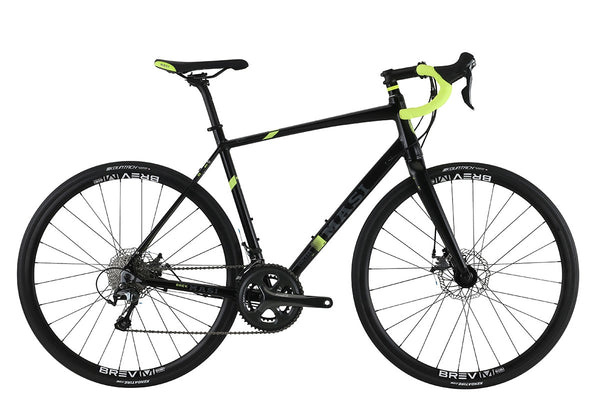

The 2017 Masi Vincere is a fine example of genuine performance without the big-ticket price. Designed and built around our Gran Fondo style "Comfort Tuned" geometry, the lightweight MA4 Aluminum frame features a taller tapered head tube combined with a carbon bladed fork to produce the perfect balance of comfort and precision handling. Flat mount disc brakes interface with BREV.M disc specific 28mm rims to deliver excellent control to suit a variety of conditions, while the Shimano Tiagra drivetrain ensures that nothing is lost in the power transfer.

Features

  • All-New Masi Comfort Tuned Alloy MA5 Disc alloy frame, full internal cable routing, tapered 1.5" head tube, BB86 press-fit BB flat mount disc
  • New Masi Elite/RS Disc carbon integrated w/tapered 7075 alloy steerer & flat mount disc
  • Shimano Tiagra derailleurs & shifters / levers
  • Shimano Tiagra 50/34t cranksetw/Shimano sealed cartridge BB
  • Shimano Tiagra CS-HG500 10-spd 11-32t cassette
  • ProMax MS3.3R flat mount mechanical disc brakes
  • New Brev. M 3D forged alloy cockpit
  • New Brev. M 28mm Race Disc rims w/ Alloy 28h disc hubs w/alloy QR
  • Kenda Kriterium 28c tires

Specifications

Frameset
Frame New Masi Ma5 Disc Double-Butted Alloy w/ Internal Tapered 1.5" Head Tube, BB86, Flat Mount Disc Brakes
Fork New Masi Elite/Rs Disc Carbon Integrated w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake
Colors Black / Fluo
Drivetrain
Cranks Shimano Tiagra Compact, 50/34t
Pedals N/A
Chain KMC X10
Bottom Bracket Shimano BB86 Sealed Cartridge
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano Tiagra 10-spd
Derailleur Shifter Shimano Tiagra 10-spd
Freewheel/Cassette Shimano Tiagra Cs-HG500, 11-32t, 10-spd
Wheels
Tires Kenda Kriterium 28c
Wheels/Rims New Brev. M 28mm Race Disc Rims, Alloy 28h Disc Cassette Hubs w/Alloy QR
Braking System
Brakes Promax Ms3.3 Flat Mount Mechanical Disc, 160F/160R
Brake Levers Shimano Tiagra
Other Components
Grips/Tape New Masi Gripper Tape
Handle Bar New Brev. M 31.8 Alloy Bar
Stem New Brev. M 3D Forged Flip/Flop Stem
Headset FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom
Saddle New Masi Scs
Seat Post New Brev. M 3D Forged Alloy 27.2 X 300mm
Seat Clamp Alloy, 31.8mm

Geometry

SizeXSSMM/LLXL
A. Seat Tube (C-T)4346.55053.555.558.5
B. Top Tube (Effective)515530545560580600
C. Head Angle717272.572.572.572.5
D. Seat Angle747473737272
E. Chainstay425425425425425425
F. BB Drop737370686865
G. Fork Offset504545404040
H. Wheel Base992993995100610141035
I. Head Tube Length125145165185205225
Stand Over729758788815830853
Stack Height530554572591610626
Reach363371370379382397

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
