CXRc Expert 2018

Regular price $3,639.99 Sale price $3,149.99
SKU: 48684
free store pickup banner
icon of click, ship and ride program
icon of what size do I ride
  • Dirt Tuned MC9 carbon frame, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered head tube & flat-mount disc brake
  • Dirt Tuned MC9 full carbon fork,12mm thru-axle, internal brake routing, flat-mount brake
  • SRAM Force 1 HRD flat mount hydraulic disc brakes
  • SRAM Force 1 11 speed derraileur and shifter

CXRc Expert 2018

Designed from the ground up as the ultimate off-road rocket, the CXRc truly is an "Evo for the dirt". Featuring our proprietary Dirt Tuned Mc9 carbon frameset, the bike is a sharp-edged race implement for those who can wield it. Equipped with SRAM’s class-leading Force 1 1x11 drivetrain, Praxis Peerless hollow-forged Zayante 1x crank with a WaveTech chainring, the CXRc Expert is race-ready out of the box. Tubeless ready Stan’s No Tubes Grail S1 rims along with TLR Kenda Small Block 8 40mm tires helps the versatility of the bike, which has been proven in major events such as the Belgian Waffle Ride and Dirty Kanza.

Features

  • Dirt Tuned MC9 carbon frame, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered head tube & flat-mount disc brake
  • Dirt Tuned MC9 full carbon fork,12mm thru-axle, internal brake routing, flat-mount brake
  • Simple 1X drivetrain, frame is upgradeable to 2x
  • SRAM Force 1 HRD flat mount hydraulic disc brakes

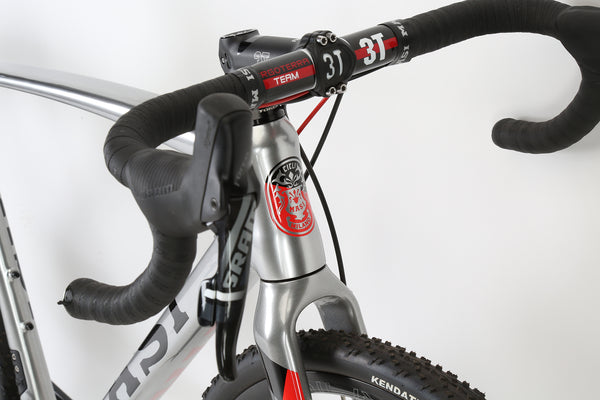

  • 3T ARX II stem and ErgoTerra bar
  • Masi by Token headset
  • Praxis Works Zayante 1x crankset w/WaveTech chainring
  • Tubeless-ready Stans NoTubes GrailS1 rims with 20mm internal width
  • Tubeless-ready Kenda Small Block 8 tires - just add valve!
  • Clearance for up to 40mm tires - with room for mud!
  • Belgian Waffle Ride proven!
  • SRAM Force 1 11 speed derraileur and shifter

Specifications

FRAMESET
FrameDirt-Tuned MC9 Carbon
ForkDirt-Tuned MC9 Full Carbon
ColorsSolar Chrome
DRIVETRAIN
CranksPraxis Works Zayante M30 w/40t WaveTech Chainring
PedalsN/A
ChainKMC X11-1
Bottom BracketPraxis Works M30 by Enduro
Front DerailleurN/A
Rear DerailleurSRAM Force 1
Derailleur ShifterSRAM Force 1
Freewheel/CassetteSRAM PG1130 11-36t, 11-spd
WHEELS
TiresKenda Small Block 8 Pro Tubeless, 700x32mm
Wheels/RimsStans NoTubes Grail S1 Tubeless Ready
BRAKING SYSTEM
BrakesSRAM Force Hydraulic Flat Mount Disc
Brake LeversSRAM Force Hydraulic Disc
OTHER COMPONENTS
Grips/TapeMasi Gripper+ Gel
Handle Bar3T Ergoterra Pro
Stem3T ARX II
HeadsetMasi by Token 1.5" Tapered, sealed bearing
SaddlePrologo Nago Evo T2.0
Seat PostBrev. M 3D Carbon Fiber, 27.2 x 300mm, 25mm offset
Seat ClampAlloy 31.8mm
ExtrasRemoveable Fender Mounts

Geometry & Sizing

Frame reference chart

To read more about how Masi's fit and geometry
are created visit our Bicycle Fit Tips page.

Bicycle Fit Tips logo
SIZE4952555760
A. Top Tube (Effective)515mm (20.3")535mm (21.1")560mm (22")575mm (22.6")590mm (23.2")
B. Seat Tube (C-T)490mm (19.3")520mm (20.5")550mm (21.7")570mm (22.4")600mm (23.6")
C. Stack Height542mm (21.3")555mm (21.9")565mm (22.2")588mm (23.1")607mm (23.9")
D. Reach360mm (14.2")371mm (14.6")387mm (15.2")395mm (15.6")398mm (15.7")
E. Standover753mm (29.6")772mm (30.4")800mm (31.5")822mm (32.4")847mm (33.3")
F. Head Tube Length115mm (4.5")125mm (4.9")135mm (5.3")160mm (6.3")180mm (7.1")
G. Head Angle71°72°72°72°72°
H. Seat Angle74°73.5°73°73°72.5°
I. Wheel Base990mm (39")996mm (39.2")1016mm (40")1031mm (40.6")1041mm (41")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")
L. Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
M. Stem Length90mm100mm110mm120mm120mm
N. Bar Width400mm420mm420mm420mm440mm
O. Crank Length170mm172.5mm172.5mm175mm175mm
P. Wheel Size
Frame size chart

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
