CXRc Comp 2017

The CXRc Comp is the hard charging understudy in the Masi, performance Cyclocross range. Utilizing the same MC9 Dirt Tuned carbon frame and fork as our pro level race bike, the CXRc delivers phenomenal performance without the intimidating price. Strategic internal cable routing weaves through tube profiles designed for easy lift and carry. Our new wider, disc specific BREV.M rims, accommodate a range of modern tire sizes and removable fender mounts create desirable options for the longer, more mellow days on the trail. FSA Gossamer cranks and our BREV.M 3D forged aluminum cockpit complete this lightweight and adaptable CX Package.


  • Masi Dirt Tuned MC9 carbon, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered headtube & flat-mount disc brake
  • Masi Dirt Tuned MC9 full carbon, 12mm thru-axle, internal brake routing, flat-mount brake
  • Shimano 105 derailleurs & shifters / levers
  • FSA Gossamer Cross 46/36t crankset w/ FSA BB86 sealed cartridge
  • Shimano 105 5800 11-spd 11-28t cassette
  • Tektro Spyre C flat mount mechanical disc brakes

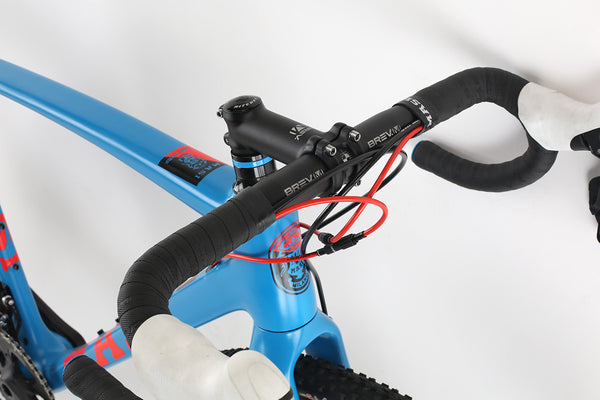

  • New Brev. M 3D forged alloy cockpit
  • New Brev. M CXR Disc rims w/ Alloy 28h disc hubs w/alloy QR
  • Clement MXP 33c 60tpi folding tires

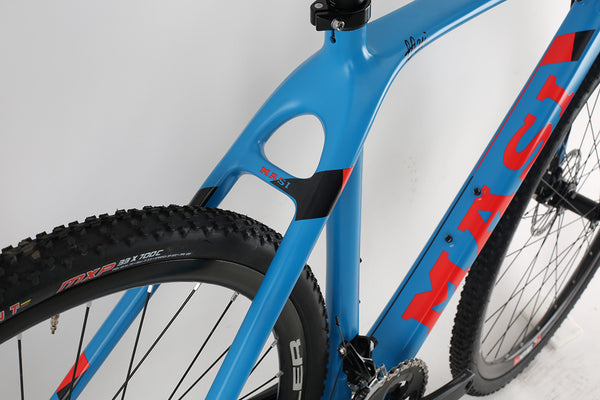

FrameMasi Dirt Tuned MC9 Carbon, 12mm Thru-Axle, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat-Mount Disc Brakes
ForkMasi Dirt Tuned MC9 Full Carbon, 12mm Thru-Axle, Internal Brake Routing, Flat-Mount Brake
ColorsBlue / Rorange
CranksFSA Gossamer Cross, 36/46t
ChainKMC X11
Bottom BracketFSA BB86 Sealed Cartridge
Front DerailleurShimano 105
Rear DerailleurShimano 105 5800 11-spd
Derailleur ShifterShimano 105 11-spd
Freewheel/CassetteShimano 5800 11-28t, 11-spd
TiresClement MXP 33c 60Tpi Folding
Wheels/RimsNew Brev. M 21mm Internal Disc Rims, Alloy 28h 12mm Thru-Axle Hubs w/Alloy TA
BrakesTektro Spyre C Flat Mount Mechanical Disc, 160F/160R
Brake LeversShimano 105
Grips/TapeNew Masi Gripper Tape w/Gel
Handle BarNew Brev. M Cx 31.8 Alloy Bar
StemNew Brev. M 3D Forged Flip/Flop Stem
HeadsetFSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom
SaddleNew Masi Scs
Seat PostNew Brev. M 3D Forged Alloy 27.2 X 300mm
Seat ClampAlloy, 31.8mm

Geometry & Sizing

Frame reference chart

To read more about how Masi's fit and geometry
are created visit our Bicycle Fit Tips page.

Bicycle Fit Tips logo
A. Top Tube (Effective)515mm (20.3")535mm (21.1")560mm (22")575mm (22.6")590mm (23.2")
B. Seat Tube (C-T)490mm (19.3")520mm (20.5")550mm (21.7")570mm (22.4")600mm (23.6")
C. Stack Height542mm (21.3")555mm (21.9")565mm (22.2")588mm (23.1")607mm (23.9")
D. Reach360mm (14.2")371mm (14.6")387mm (15.2")395mm (15.6")398mm (15.7")
E. Standover753mm (29.6")772mm (30.4")800mm (31.5")822mm (32.4")847mm (33.3")
F. Head Tube Length115mm (4.5")125mm (4.9")145mm (5.7")180mm (7.1")200mm (7.9")
G. Head Angle71°72°72°72°72°
H. Seat Angle74°73.5°73°73°72.5°
I. Wheel Base990mm (39")996mm (39.2")1016mm (40")1031mm (40.6")1041mm (41")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")
L. Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
M. Stem Length
N. Bar Width
O. Crank Length
P. Wheel Size
Frame size chart
