CXGRc

Regular price $3,249.99
SKU: 49556
free store pickup banner
icon of click, ship and ride program
icon of what size do I ride
  • Dirt Tuned MC9 Carbon Frame, 12mm Thru-Axle, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat Mount Disc Brake
  • Praxis Works Alba M30 1x crankset w/ WaveTech Chainring
  • Tubeless-ready Brev. M CXR Disc rims w/ 23mm internal width
  • Clearance for up to 700 x 44 or 650 x 47 tires - with room for mud!

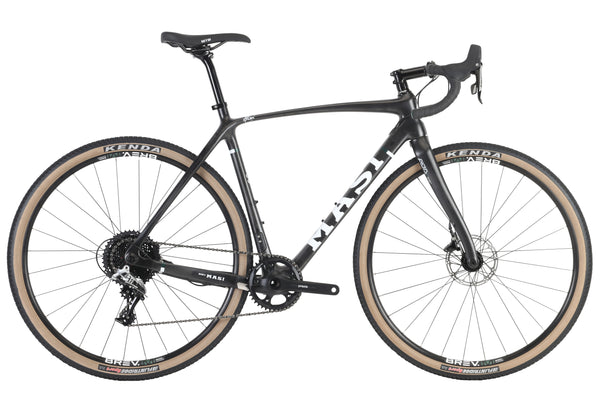

CXGRc

Equally at home on the double-track, single-track or the bike path in between, the CXGRc is the ultimate mixed-surface weapon. A lightweight Dirt Tuned MC9 carbon frame & fork matches with the wide tubeless-ready Brev. M wheels, adventure bend alloy bars and SRAM Rival 11-spd. HRD components. With clearance for 700 x 40c, the CXGRc is ready for you to choose your own adventure, no matter where it leads you.

Features

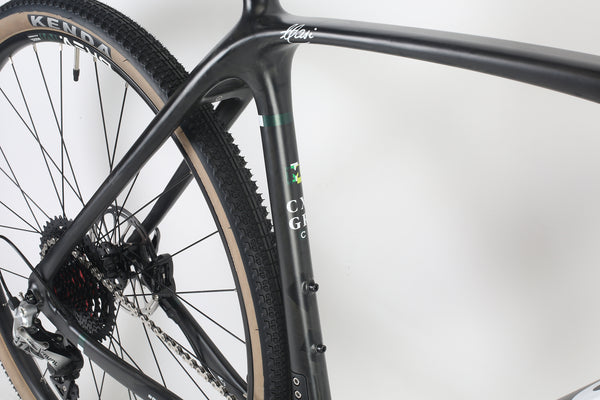

  • Dirt Tuned MC9 Carbon Frame, 12mm Thru-Axle, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat Mount Disc Brake
  • Dirt Tuned MC9 full Carbon Fork, 12mm Thru-Axle, Internal Brake Routing, Flat Mount Disc Brake
  • Simple 1X drivetrain, frame is upgradeable to 2x with included hardware
  • Praxis Works Alba M30 1x crankset w/ WaveTech Chainring
  • Brev. M Compact Adventure Bend Bars
  • Kenda Flintridge 700x40c Tires
  • Tubeless-ready Brev. M CXR Disc rims w/ 23mm internal width
  • Clearance for up to 700 x 44 or 650 x 47 tires - with room for mud!

Specifications

FRAMESET
FrameMasi Dirt-Tuned Carbon MC9, 12mm thru-axle, Di2 Compatible, BB86, Internal Routing, Tapered Headtube
ForkMasi Dirt-Tuned MC9 Full Carbon 1 1/8 - 1.5 Steerer, 12mm Thru-Axle, Internal Brake Routing, Flat Mount Disc & Fender Mounts.
ColorsUD Carbon
DRIVETRAIN
CranksPraxis Works Alba, 40t Wave Tech Ring
PedalsN/A
ChainKMC X11
Bottom BracketPraxis Works M30 by Enduro, BB86
Front DerailleurN/A
Rear DerailleurSRAM Rival 1X Long Cage
Derailleur ShifterSRAM Rival HRD
Freewheel/CassetteSRAM PG1130 11-42T
WHEELS
TiresKenda Flintridge 700x40mm, 60tpi
Wheels/RimsBrev M. 23mm internal Tubeless Ready, Double Wall, 28h.
BRAKING SYSTEM
BrakesSRAM Rival HRD, Flat Mount
Brake LeversSRAM Rival HRD
OTHER COMPONENTS
Grips/TapeMasi Gripper Silicon Gel
Handle BarBrev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm
StemBrev. M 3D Forged Alloy, 31.8mm
HeadsetToken 1 1/8"-1.5" Sealed Bearing
SaddleWTB Volt Sport
Seat PostBrev. M 3D Forged Alloy, 27.2mm
Seat ClampBrev. M Alloy
ExtrasFender Mounts

Geometry & Sizing

Frame reference chart

To read more about how Masi's fit and geometry
are created visit our Bicycle Fit Tips page.

Bicycle Fit Tips logo
SIZE4952555760
A. Top Tube (Effective)515mm (20.3")535mm (21.1")560mm (22")575mm (22.6")590mm (23.2")
B. Seat Tube (C-T)490mm (19.3")520mm (20.5")550mm (21.7")570mm (22.4")600mm (23.6")
C. Stack Height542mm (21.3")555mm (21.9")565mm (22.2")588mm (23.1")607mm (23.9")
D. Reach360mm (14.2")371mm (14.6")387mm (15.2")395mm (15.6")398mm (15.7")
E. Standover753mm (29.6")772mm (30.4")800mm (31.5")822mm (32.4")847mm (33.3")
F. Head Tube Length115mm (4.5")125mm (4.9")135mm (5.3")160mm (6.3")180mm (7.1")
G. Head Angle71°72°72°72°72°
H. Seat Angle74°73.5°73°73°72.5°
I. Wheel Base990mm (39")996mm (39.2")1016mm (40")1031mm (40.6")1041mm (41")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")68mm (2.7")
L. Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
M. Stem Length90mm100mm110mm120mm120mm
N. Bar Width400mm420mm420mm420mm440mm
O. Crank Length170mm172.5mm172.5mm175mm175mm
P. Wheel Size
Frame size chart


*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
